Healthcare — Gen AI, Data Analytics & Applications Architecture

Healthcare organizations are increasingly leveraging cloud technologies and artificial intelligence to improve patient outcomes, streamline operations, and enhance clinical decision-making. This comprehensive guide explores three critical Google Cloud architectures designed specifically for healthcare: Generative AI, Data Analytics, and Applications Architecture.

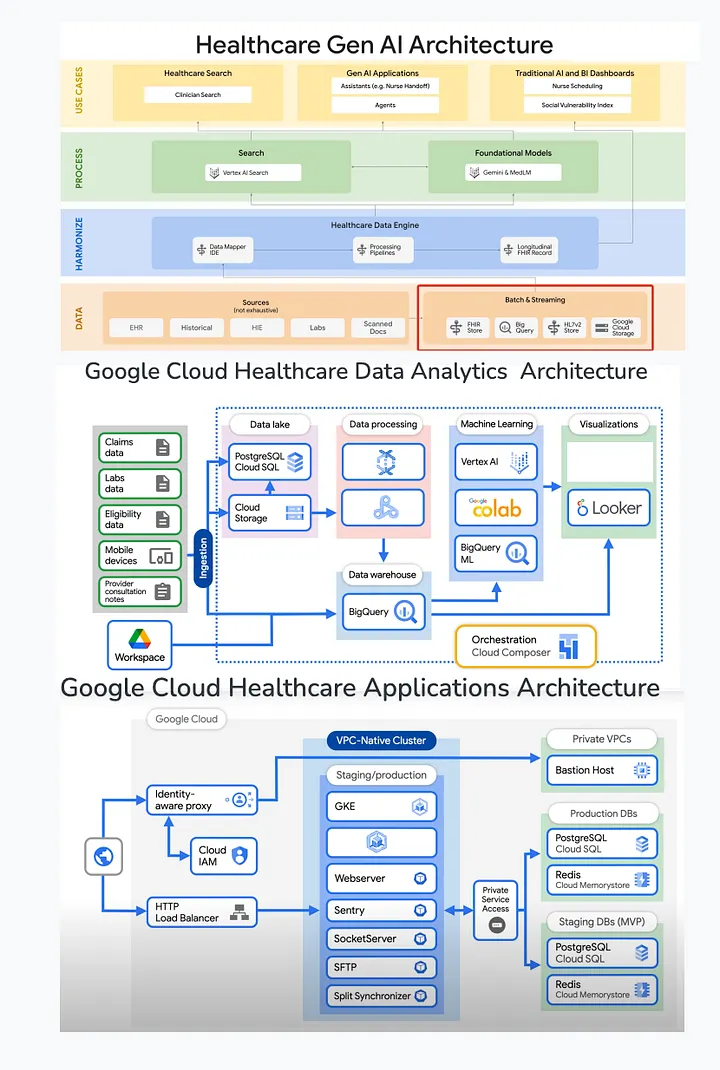

1. Healthcare Gen AI Architecture

This architecture focuses on leveraging Generative AI to support various healthcare use cases, such as clinician search and AI-driven applications.

🎯 Use Cases:

• Healthcare Search: Facilitating clinician-specific searches using Vertex AI Search
• Gen AI Applications: Building virtual assistants for tasks like nurse handoffs
• AI & BI Dashboards: Creating social vulnerability indices and nurse scheduling tools

🛠️ GCP Technologies:

• Vertex AI Search: Provides semantic search capabilities for retrieving relevant healthcare information
• Healthcare Data Engine (HDE):
  • Data Mapper: Maps healthcare data formats like FHIR and HL7 for interoperability
  • Processing Pipelines: Uses Dataflow for ETL (Extract, Transform, Load) pipelines
  • Longitudinal FHIR Record: Stores patient data over time in a unified FHIR format

📊 Data Sources:

• Google Cloud Storage: For storing scanned documents and historical data
• BigQuery: For analytics and queries
• FHIR and HL7v2 Store: Managed services for storing healthcare data compliant with standards
• Gemini AI Models: Pre-trained models for medical use cases like MedLM

2. Google Cloud Healthcare Data Analytics Architecture

This architecture is tailored for managing and analyzing healthcare data to derive actionable insights.

🔄 Data Lifecycle:

Data Lake:

• Cloud Storage: Stores raw data such as claims, labs, and eligibility information
• Cloud SQL (PostgreSQL): For relational database needs in the data lake

Data Processing:

• Dataflow: Handles data transformation and pipeline orchestration
• Cloud Composer: Manages and orchestrates workflows

Data Warehouse:

• BigQuery: Central data warehouse for large-scale analysis and ML model training

Machine Learning:

• Vertex AI: Builds, trains, and deploys ML models
• BigQuery ML: Enables running ML directly on warehouse data

Visualization:

• Looker: Generates dashboards and visual reports for decision-making

Collaboration:

• Google Workspace: Connects healthcare data to user-friendly interfaces (e.g., Google Sheets)

💡 Best Use Case: Population health analytics, predictive modeling, and operational optimization in hospitals.

3. Google Cloud Healthcare Applications Architecture

This architecture ensures the secure deployment of healthcare applications with high availability and scalability.

🏗️ Components:

VPC-Native Cluster:

• Google Kubernetes Engine (GKE): Hosts scalable containerized applications
• HTTP Load Balancer: Ensures efficient traffic distribution
• Cloud IAM: Provides identity and access management
• Identity-Aware Proxy (IAP): Adds another layer of secure access control for applications

Application Features:

• Web Servers: For hosting frontend and backend applications
• Monitoring (Sentry): Tracks application errors and performance
• SocketServer/SFTP: For secure communication and data exchange
• Split Synchronizer: Synchronizes data between environments

Databases:

• Cloud SQL (PostgreSQL): Stores application and staging data
• Cloud Memorystore (Redis): Provides caching for high-performance applications

Private Connectivity:

• Private VPCs: Secures database access and backend communication
• Bastion Host: Secure gateway for administrative access

💡 Best Use Case: Deploying healthcare applications such as electronic health records (EHR), telehealth solutions, or patient portals.

📋 Summary of Key GCP Technologies

🚀 Benefits of This Architecture

• Scalability: Handle massive healthcare datasets and user loads
• Security: Enterprise-grade security with HIPAA compliance
• Interoperability: Native support for FHIR and HL7 standards
• AI-Powered Insights: Leverage Google's advanced AI models for healthcare
• Cost Optimization: Pay-as-you-use model with efficient resource utilization

This combination of technologies enables secure, scalable, and compliant healthcare solutions across analytics, AI, and applications. The architecture provides a comprehensive foundation for modern healthcare organizations looking to leverage cloud technologies for improved patient care and operational efficiency.
